结构手板和功能手板的交互原理
来源：http://dcjzl.com作者：哈希28单双发布时间：2019-07-25
结构手板;主要检测产品的结构合理性，对于尺寸要求较高，对外观要求相对较低，国外对这类要求尤为严格。外观手板;主要检测产品的外观设计，要求外观精美，颜色准确。
The structure of the hand plate; the structure of the products is reasonable, the requirements of the size are higher, the requirements of the appearance are relatively low, and the requirements of this kind are particularly strict in foreign countries. The appearance of the hand board; the main inspection of the appearance of the product design, the appearance of beautiful appearance, accurate color.
对内部的处理要求不高，有些的内部直接做成实心体。功能手板;要求实现跟真正的产品一样完全相同的外观、结构及功能，可以理解为未上市的成品，是要求*高，难度*大的一类手板。
The internal processing requirements are not high, and some interior is made directly into solid body. The functional hand plate, which requires the same appearance, structure and function as the real product, can be understood as the unfinished product, which is the most demanding and most difficult type of hand plate.
手板模型，其实就是一个已经完成并且用来检查所需要设计产品的模型，并通过此手板模型来看看所生产的模型是否合理，找出其中的不足，根据手板模型找出设计图纸的合理性。
The hand panel model is actually a model that has been completed and used to check the products that need to be designed. Through this hand plate model, we can see if the model is reasonable, find out the shortcomings, and find out the rationality of the design drawings according to the hand plate model.
但在设计时有一个问题要注意，那就是刚开始的设计模型不能设计的在好，否找找不出缺陷，如果不经过仔细检查，一旦成批量的生产，将会造成很大的资源浪费，其中包括有人力物力还有时间，这对企业来说是*忌讳的。
But there is a problem in the design should pay attention to, that is the beginning of the design of model design cannot be in good, not for a defect, if not carefully checked, once the production batch, it will cause a great waste of resources, including manpower and time, this is the most taboo on enterprise.
在做手板模型的时候，我们经常会听到工艺这个词，那么手板模型有哪些工艺么?由于手板模型有多种制作方式，包括CNC加工、3d打印、真空复模、低压灌注等等，并且每种方式的工艺各不相同，下面就以*常见的CNC加工为例，为大家介绍一下它的工艺。
When doing the model, we often hear the word process, then model what process? Because Shouban model has produced a variety of ways, including CNC processing, 3D printing, vacuum casting, low-pressure perfusion and so on, and the process of each mode is different, the most common processing in CNC for example, to introduce its technology.

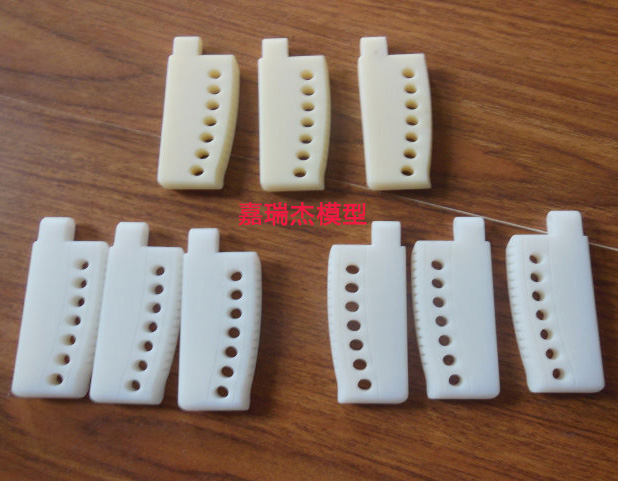

经过CNC加工出来的手板，并不是非常平整的，多少会有点毛边，需要用砂纸将其磨平，使手板模型的表面更加光滑，更好的进行下一工序。
The hand plate processed by CNC is not very smooth, and there will be a bit of edge. It needs to be smoothed with sandpaper, making the surface of the hand plate model smoother and better for the next process.
本文由济南手板友情奉献.更多有关的知识请点击:http://dcjzl.com 我们将用*的技术.*真诚的态度.为您提供*为的服务.更多有关的知识我们将会陆续向大家奉献.敬请期待.
This article is from Qingdao hand plate friendship dedication. Please click on more related knowledge: http://dcjzl.com, we will use the most advanced technology and the most sincere attitude to provide you with the most comprehensive service. We will dedicate more related knowledge to you. Please look forward to it
